Competence · Steelmaking

Meltshop electrical & automation

From the electric arc furnace to the billet, we design the power, control and automation systems of the meltshop, build and test them in our own facility and commission them on site. The aim is consistent, safe operation with lower energy, electrode and refractory consumption.

Discuss your project Meltshop references

80 telectric arc furnace automated

6 strandscontinuous casting and torch cutting

500,000 t/ymeltshop capacity reconstructed

Steelmaking

Process flow

Select a step to jump to its section.

01Electric arc furnace (EAF)

Furnace performance starts with keeping the electrodes in the right position. We bring electrode regulation, furnace motions and auxiliary systems into one control structure. The operator follows the whole furnace from the main pulpit and HMI screens.

Our scope

Electrode and arc regulation
Furnace motions: roof lift and swing, furnace tilting, electrode arms
Control of hydraulic and cooling water systems
MCC panels, drives, PLC/HMI, main pulpit
Cabling and network engineering

Power quality: an arc furnace causes flicker and harmonics on the grid. We address compensation and harmonic filtering at the start of the project.

Power distribution & compensation

02Ladle furnace (LF) and alloy addition

The ladle furnace brings temperature and chemistry to casting conditions. We automate electrode regulation, furnace motions and the alloy addition system together.

Our scope

Electrode regulation
Furnace motions: roof, electrode arms, ladle car
Alloy addition: bunkers, weighing and feeding control
MCC, PLC/HMI and control desk

03Continuous caster (CCM)

Product quality in continuous casting depends on stable mould level and casting speed. We supply automation that follows each strand separately, and the torch cutting system at the strand exit.

Our scope

Mould level control
Casting speed and withdrawal-straightener drives per strand
Torch cutting automation; delivered on a 6-strand caster
Billet transfer and discharge
MCC, drives, PLC/HMI

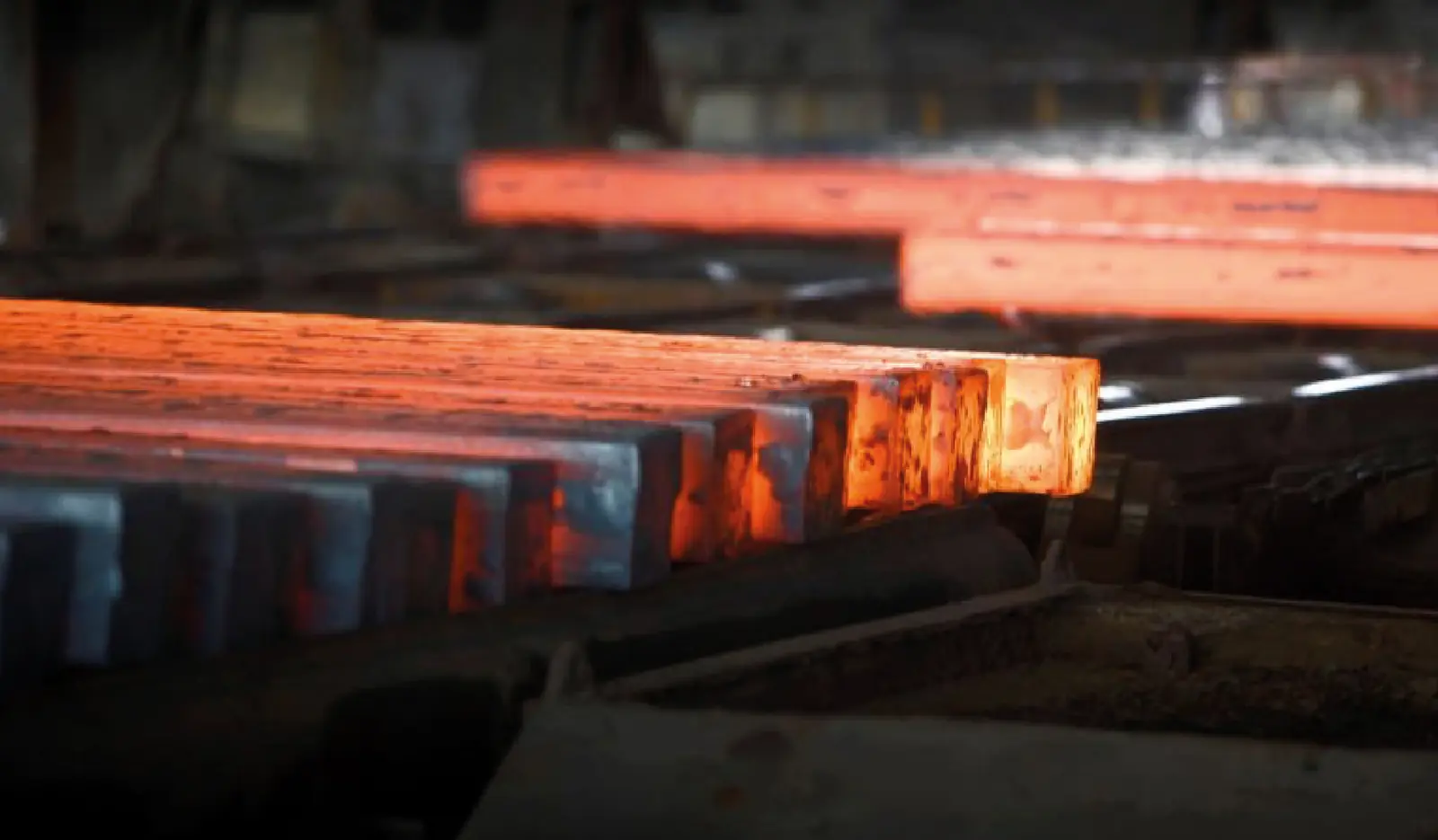

04Billet

Every cast billet is recorded in the Level 2 system with its heat number and strand, so traceability continues into the rolling mill.

Level 1 and Level 2

Fume extraction ducts and steel structure

Auxiliary plants

Fume treatment: fan drives, dampers and filter cleaning control
Water treatment: pump stations, level and flow control, cooling circuits

Scope

Across all areas

Layer	What we deliver

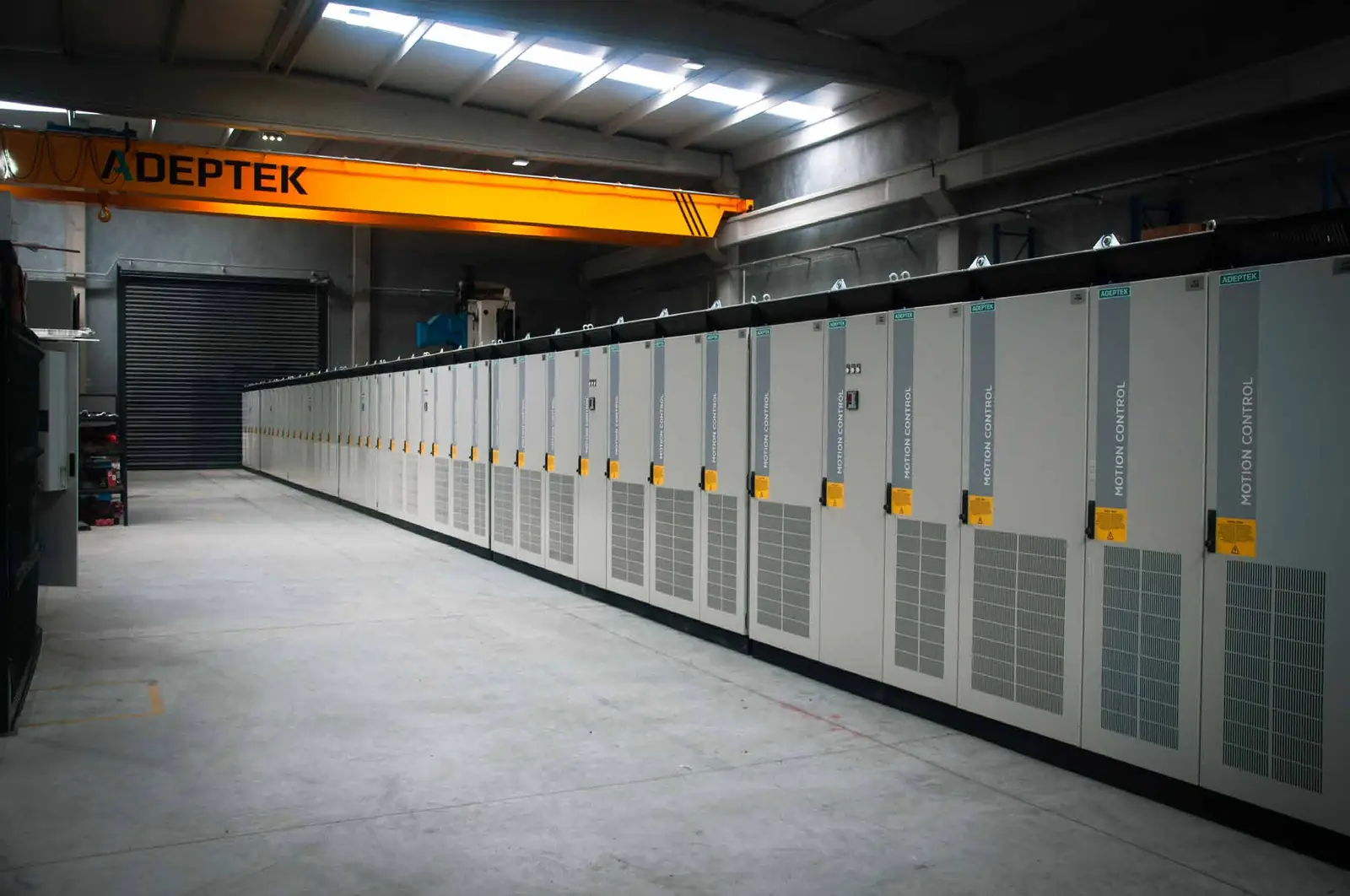

Power	LV distribution panels, MCCs, AC/DC drives, compensation
Level 1	Siemens PLC and HMI, main pulpits, field networks
Level 2	Heat and billet tracking, production reports, delay management, KPIs
Services	Engineering, in-house manufacturing and FAT, site supervision, commissioning

Project types

Greenfield, revamp or a single area

Greenfield

Full electrical and automation scope from design to commissioning.

Revamp

Bringing a meltshop back into operation after years idle, with equipment damaged or missing.

Partial modernisation

Renewal of one area such as the ladle furnace or caster, integrated with the existing system.

Projects

Meltshop references

Projects are listed without client names; references and contacts are shared on request.

Year	Country	Project	Highlights
2024 – ongoing	Türkiye	CCM Torch Cutting System Automation	6-strand caster
2024	Türkiye	Meltshop Ladle Furnace Automation	40 t LF, electrode regulation, furnace motions
2023 – ongoing	Türkiye	Complete Minimill (Meltshop & Rolling Mill) Electrical & Automation Revamp	Plant idle for years
2021	Türkiye	Meltshop Electrical & Automation Reconstruction	80 t EAF, LF, alloy addition, 6-strand CCM, fume and water treatment, 500,000 t/y
2020–2021	Azerbaijan	Bar-Rebar Rolling Mill and Meltshop Automation	Induction furnaces, single-strand CCM, 4 m pusher furnace

All projects

Let’s talk about your meltshop

Tell us about your existing system, target capacity and planned work, and we will define the scope together. Client references and contacts are shared on request.
