WITTENSTEIN · alpha Premium Line
RP+
Planetary gearbox with output flange that carries high axial and radial loads
- Ratio: 4 – 220
- Max. torque: 352 – 10450 Nm
- Backlash: ≤ 1 – 3 arcmin
WITTENSTEIN
Coaxial Gearboxes
Planetary gearboxes and Galaxie®
Planetary gearboxes and Galaxie® – solutions offering precision, power and efficiency.
alpha Premium Line
WITTENSTEIN · alpha Premium Line
XP+
Specially designed planetary gearbox with output shaft and the highest power density
- Ratio: 3 – 100
- Max. torque: 50 – 3840 Nm
- Backlash: ≤ 1 – 4 arcmin
alpha Advanced Line
WITTENSTEIN · alpha Advanced Line

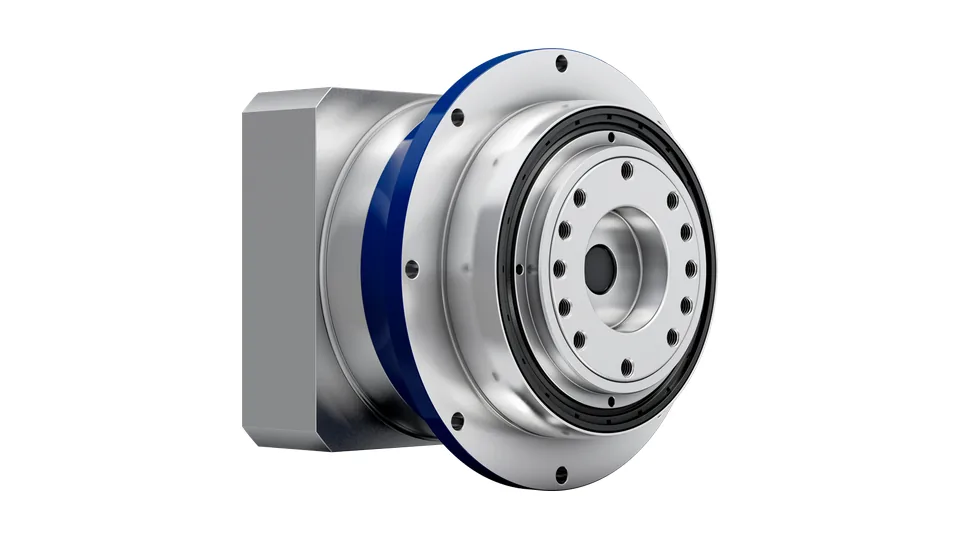

TP+
Compact planetary gearbox with high torsional rigidity and an output flange
- Ratio: 4 – 302.5
- Max. torque: 43 – 22000 Nm
- Backlash: ≤ 1 – 3 arcmin
WITTENSTEIN · alpha Advanced Line
SP+
Planetary gearbox with output shaft for high positioning accuracy and dynamic performance
- Ratio: 3 – 100
- Max. torque: 48 – 5700 Nm
- Backlash: ≤ 1 – 4 arcmin
alpha Value Line
WITTENSTEIN · alpha Value Line
NP
Planetary gearboxes with output shaft and a wide range of ratios
- Ratio: 3 – 100
- Max. torque: 18 – 800 Nm
- Backlash: ≤ 8 arcmin
WITTENSTEIN · alpha Value Line

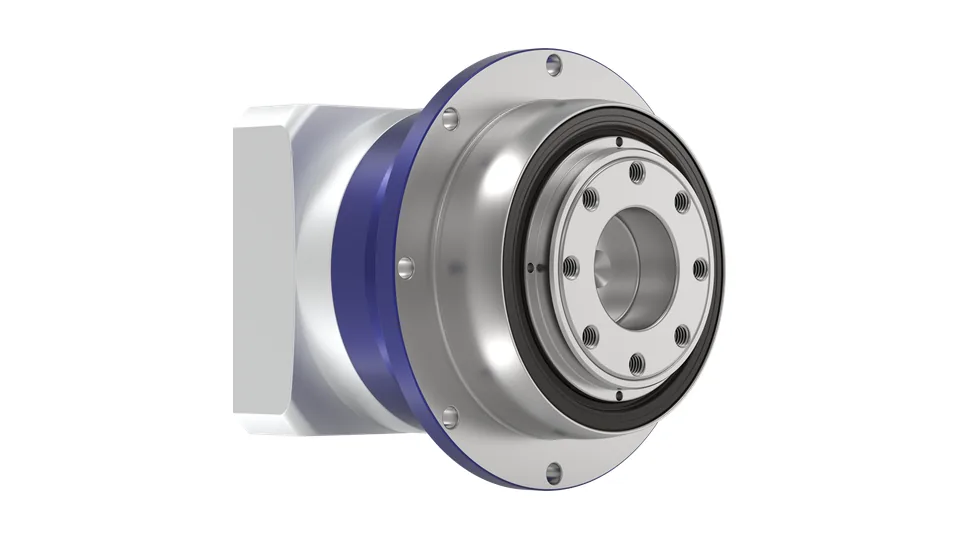

NTP
The most economical planetary gearbox with the TP+ output geometry
- Ratio: 4 – 100
- Max. torque: 56 – 800 Nm
- Backlash: ≤ 5 arcmin
WITTENSTEIN · alpha Value Line

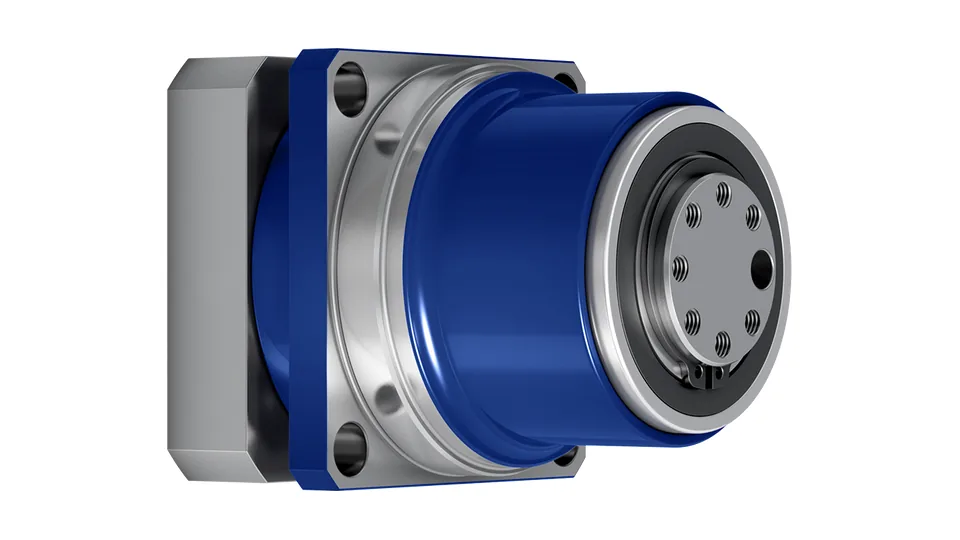

LPB+
Compact planetary gearbox with output flange and optional belt pulley
- Ratio: 3 – 100
- Max. torque: 37 – 305 Nm
- Backlash: ≤ 8 arcmin
WITTENSTEIN · alpha Value Line

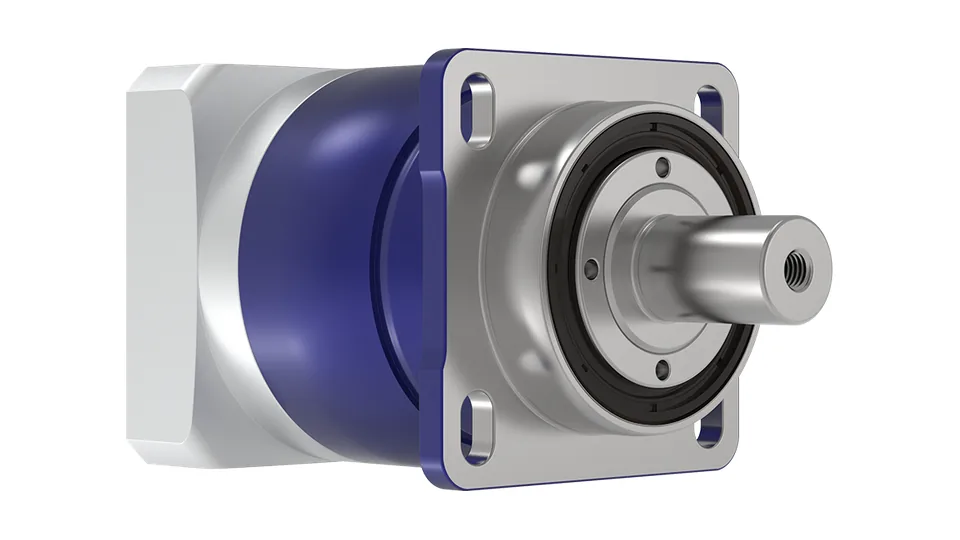

NPR
Planetary gearbox with slotted holes that optimises the rack-and-pinion connection
- Ratio: 3 – 100
- Max. torque: 51 – 800 Nm
- Backlash: ≤ 8 arcmin
WITTENSTEIN · alpha Value Line

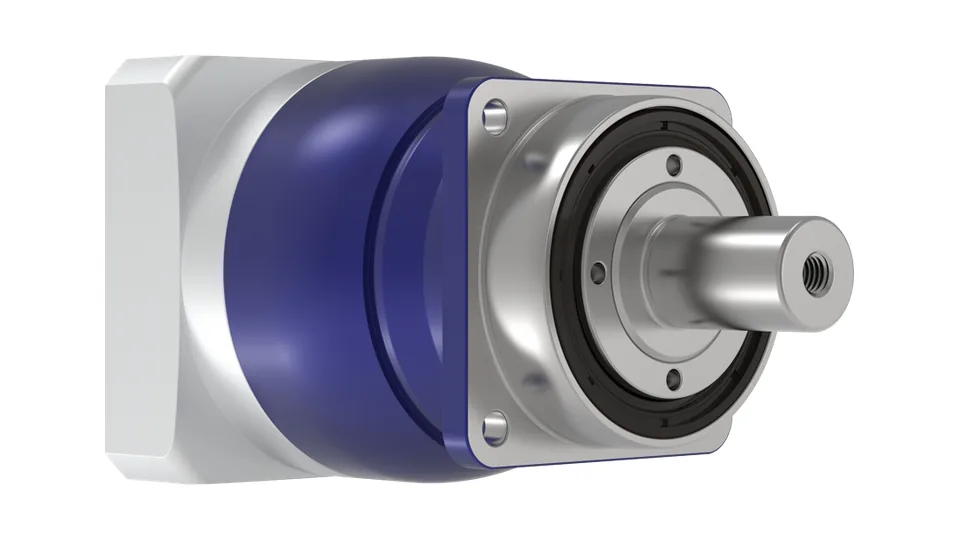

NPS
Economical planetary gearbox with the SP+ output geometry
- Ratio: 3 – 100
- Max. torque: 51 – 800 Nm
- Backlash: ≤ 8 arcmin
WITTENSTEIN · alpha Value Line
NPL
Planetary gearbox with reinforced bearings and B14 output geometry
- Ratio: 3 – 100
- Max. torque: 51 – 800 Nm
- Backlash: ≤ 8 arcmin
alpha Basic Line
WITTENSTEIN · alpha Basic Line

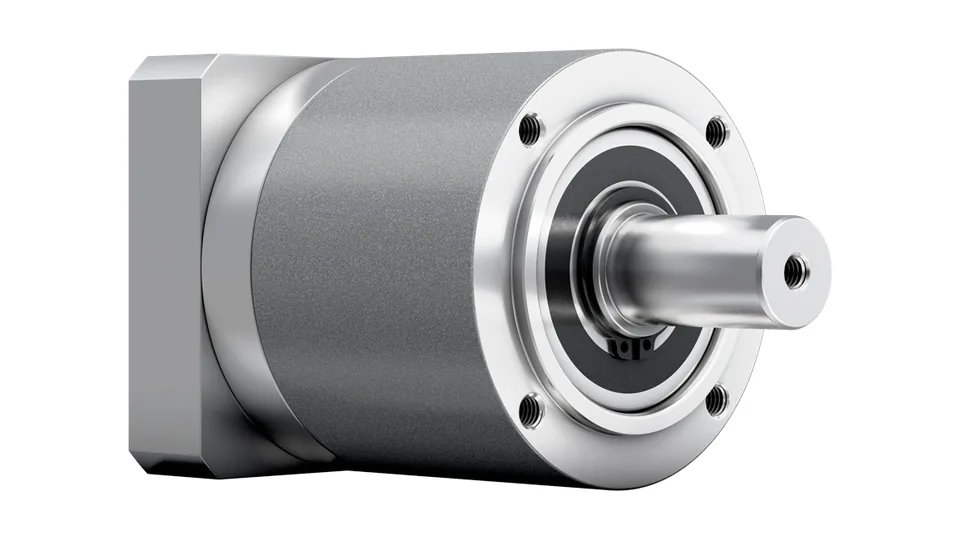

CP
Planetary gearbox with output shaft, high flexibility and high cost efficiency
- Ratio: 3 – 100
- Max. torque: 17 – 800 Nm
- Backlash: ≤ 12 arcmin
Galaxie®
WITTENSTEIN

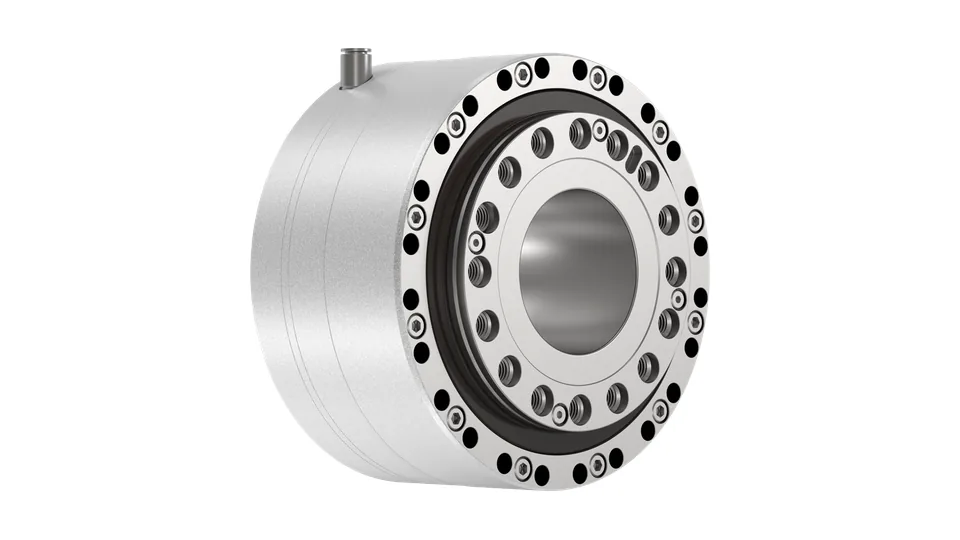

Galaxie® GS
Galaxie® GS sets new standards in precision and hollow-shaft diameter
- Ratio: 24 – 31
- Max. torque: 350 – 6000 Nm
- Backlash: 0 arcmin
WITTENSTEIN

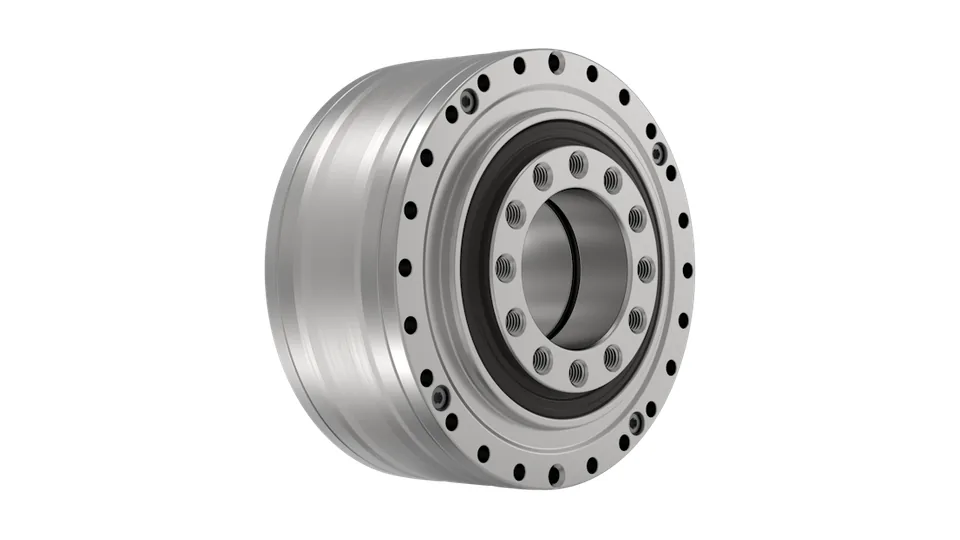

Miniaturised Galaxie®
Miniaturised Galaxie® – maximum torsional rigidity, zero backlash and the largest hollow shaft
- Ratio: 60 – 61
- Max. torque: 150 – 250 Nm
- Backlash: 0 arcmin
