Rack and Pinion Systems

WITTENSTEIN · alpha Value Line

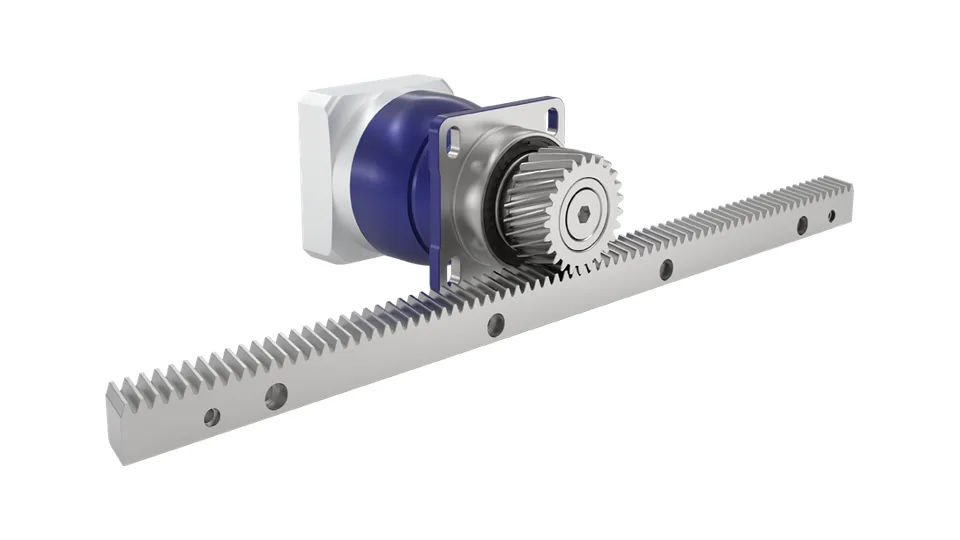

Value Linear Systems

Rack-and-pinion system in the Value segment with R flange

• Max. feed force: 1.89 – 8 kN
• Max. feed speed: 160 – 400 m/min
• Positioning accuracy (single drive): ≥ 140 µm

WITTENSTEIN · alpha Advanced Line

Advanced Linear Systems

These systems are designed for applications with medium to high requirements for smooth running, positioning accuracy and feed force.

• Max. feed force: 1.37 – 21 kN
• Max. feed speed: 45 – 570 m/min
• Positioning accuracy (single drive): ≥ 30 µm

WITTENSTEIN · alpha Premium Line

Premium Linear Systems

The perfect solution for linear feed drives in machine tools and highly dynamic automation

• Max. feed force: 5.45 – 112 kN
• Max. feed speed: 91 – 333 m/min
• Positioning accuracy (single drive): ≥ 30 µm

WITTENSTEIN

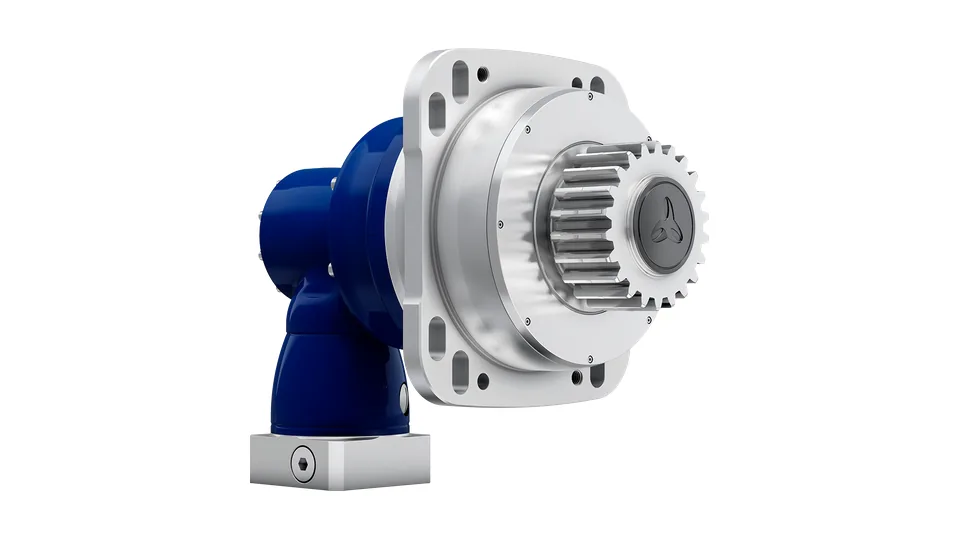

Spur-toothed systems

Rotary systems with spur-toothed stages

• Max. feed force: 1.16 – 108 kN

WITTENSTEIN

Racks

Racks in lengths of 500–2000 mm, perfectly matched to our systems

• Size / module: 1.5 mm – 8 mm
• Max. feed force: 2.3 – 135 kN
• Length: 167 – 2000 mm

WITTENSTEIN

Rack mounting accessories

For precise and efficient rack mounting

WITTENSTEIN

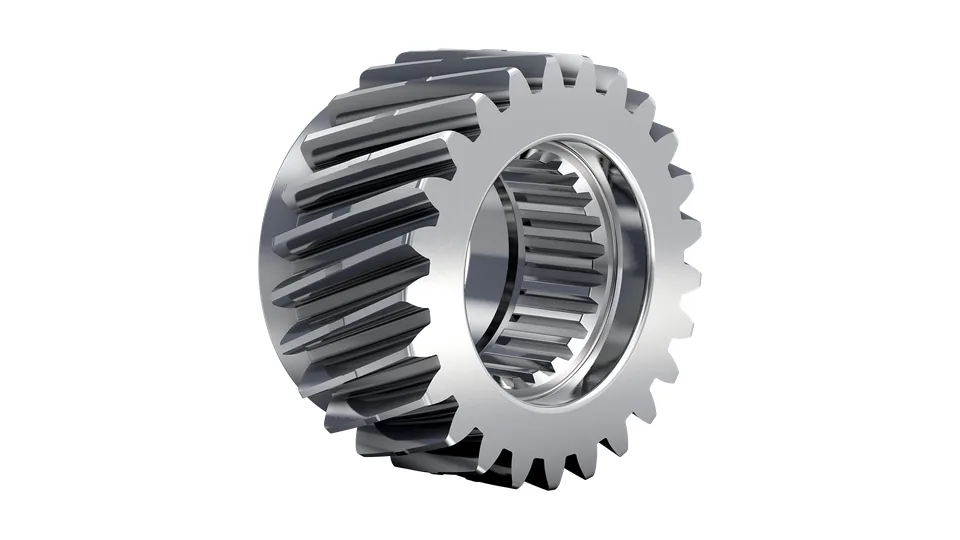

Pinions

Pre-mounted pinions that reduce assembly effort

• Size / module: 1.5 mm – 8 mm
• Max. feed force: Depends on the gearbox
• Versions: Factory-mounted

WITTENSTEIN · alpha Advanced Line

LUC+125 lubricant dispenser

Lubricant dispenser with 125 cm³ filling volume for optimum relubrication of open gears

• Filling volume: 125 cm³
• Number of outlets: 1
• Operating voltage: 24 V

WITTENSTEIN · alpha Advanced Line

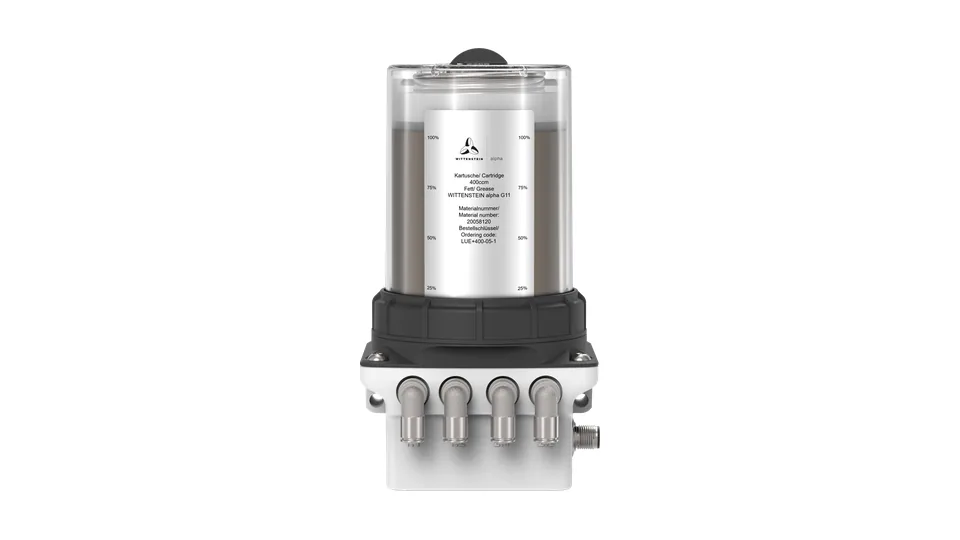

LUC+400 lubricant dispenser

Lubricant dispenser with 400 cm³ filling volume for optimum relubrication of open gears

• Filling volume: 400 cm³
• Number of outlets: 1, 2, 3, 4
• Operating voltage: 24 V

WITTENSTEIN

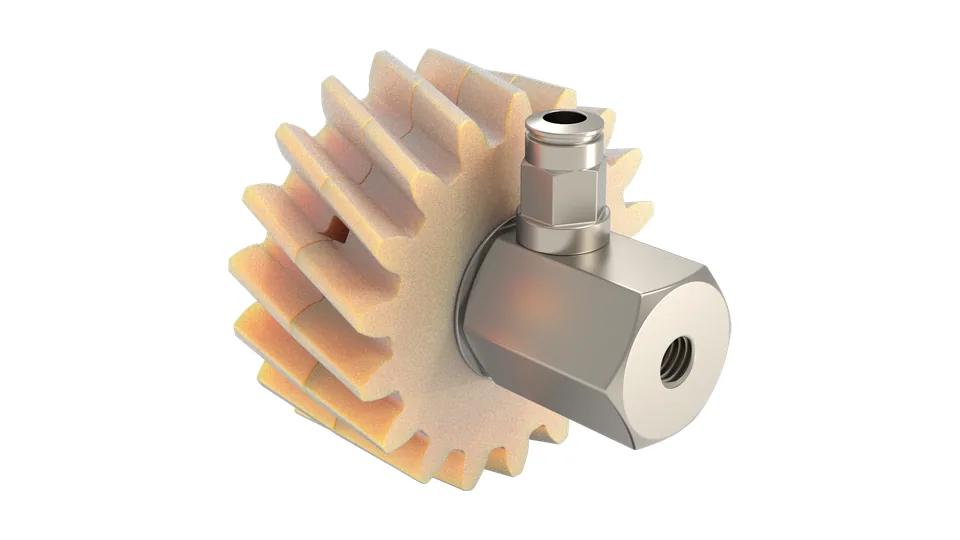

LMT lubrication pinion

Lubrication pinions and lubrication axes for relubricating open gears

• Size / module: 1.5 mm – 8 mm
• Helix direction: Straight, left/right helix
• Connection orientation: Straight, angled

WITTENSTEIN

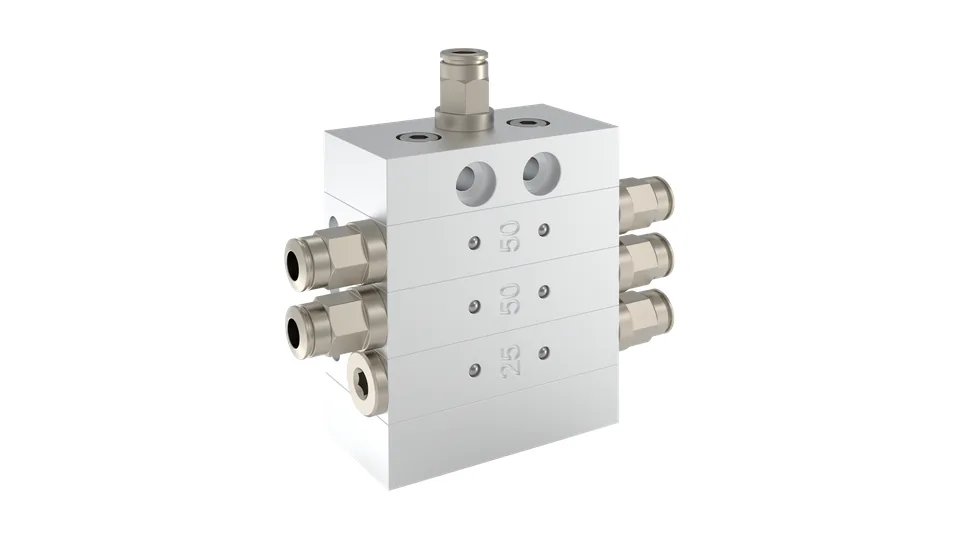

LUP progressive distributor

Progressive distributor for precise lubricant distribution

• Number of outlets: 2, 3, 4, 5, 6, 7, 8
• Operating temperature (depends on lubricant): 10°C - 60°C
• Hose connection: Straight, 6 mm

WITTENSTEIN

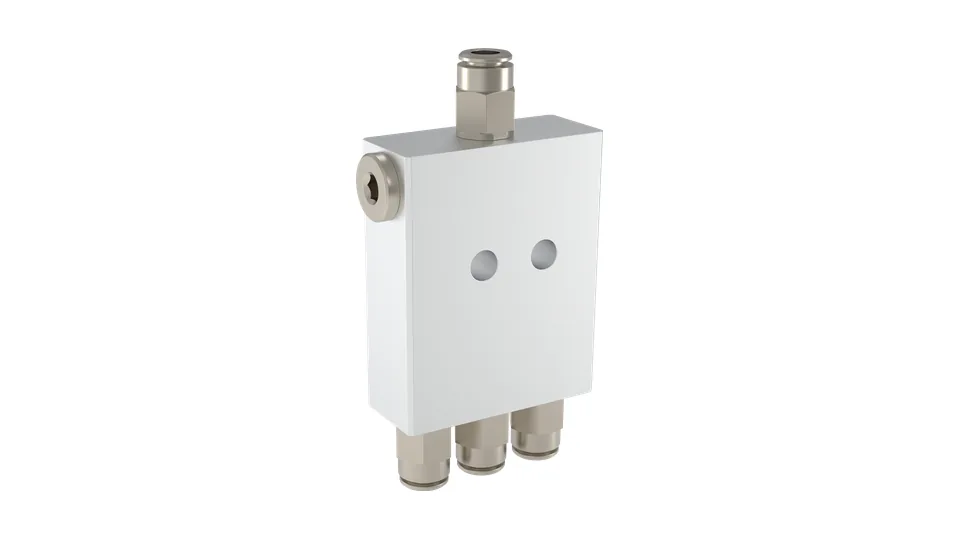

LUS splitter

Splitter for lubricant distribution

• Number of outlets: 2, 3, 4
• Operating temperature (depends on lubricant): 10°C - 60°C
• Hose connection: Straight, 6 mm
