WITTENSTEIN · alpha Premium Line

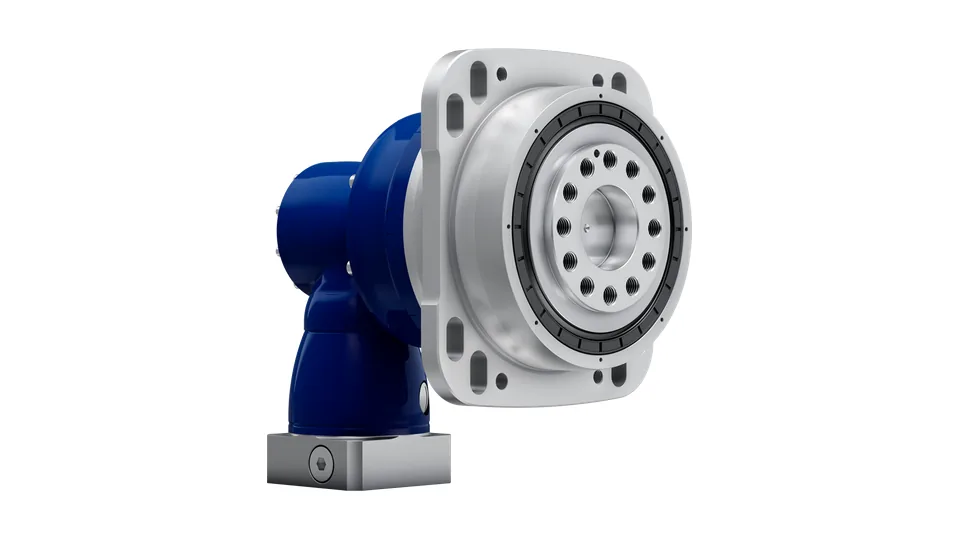

RPK+
Precision hypoid gearbox with slotted holes and pinion for transmitting the highest feed forces
- Ratio: 48 – 5500
- Max. torque: 1100 – 10450 Nm
- Backlash: ≤ 1,3 arcmin
WITTENSTEIN
Right-Angle Gearboxes
Hypoid, bevel and worm gearboxes
Hypoid, bevel and worm gearboxes – solutions with maximum flexibility at the interfaces for limited installation space.
alpha Premium Line
WITTENSTEIN · alpha Premium Line
XPK+
Precision hypoid gearbox with increased positioning accuracy and very smooth running
- Ratio: 12 – 1000
- Max. torque: 80 – 2520 Nm
- Backlash: ≤ 2 – 4 arcmin
WITTENSTEIN · alpha Premium Line
RPC+
High-precision bevel gearbox with a specially designed output for very high torque transmission
- Ratio: 22 – 55
- Max. torque: 1402 – 7535 Nm
- Backlash: ≤ 1,3 arcmin
WITTENSTEIN · alpha Premium Line
XPC+
High-precision bevel gearbox with optimum temperature distribution even at high speeds
- Ratio: 4 – 20
- Max. torque: 48 – 2646 Nm
- Backlash: ≤ 2 – 4 arcmin
alpha Advanced Line
WITTENSTEIN · alpha Advanced Line
TPK+
Hypoid gearbox with an output flange compatible with TP+
- Ratio: 12 – 10000
- Max. torque: 80 – 10450 Nm
- Backlash: ≤ 1,3 – 4 arcmin
WITTENSTEIN · alpha Advanced Line
SPK+
Hypoid gearbox for high ratios with an output compatible with the SP+ series
- Ratio: 12 – 1000
- Max. torque: 80 – 5700 Nm
- Backlash: ≤ 2 – 4 arcmin
WITTENSTEIN · alpha Advanced Line
TK+
Hypoid gearbox with hollow shaft and output flange
- Ratio: 3 – 100
- Max. torque: 20 – 768 Nm
- Backlash: ≤ 4 arcmin
WITTENSTEIN · alpha Advanced Line
HG+
Hollow-shaft hypoid gearbox with a high number of variants
- Ratio: 3 – 100
- Max. torque: 20 – 768 Nm
- Backlash: ≤ 4 arcmin
WITTENSTEIN · alpha Advanced Line

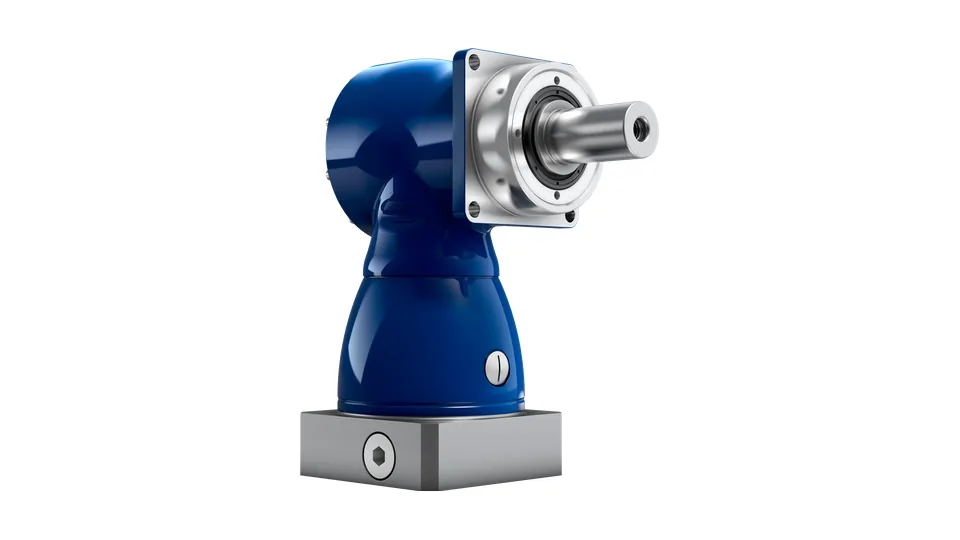

SK+
Compact hypoid gearbox
- Ratio: 3 – 100
- Max. torque: 20 – 768 Nm
- Backlash: ≤ 4 arcmin
WITTENSTEIN · alpha Advanced Line
TPC+
Bevel gearboxes with a TP+-compatible output flange for high power density
- Ratio: 4 – 20
- Max. torque: 48 – 2560 Nm
- Backlash: ≤ 2 – 4 arcmin
WITTENSTEIN · alpha Advanced Line

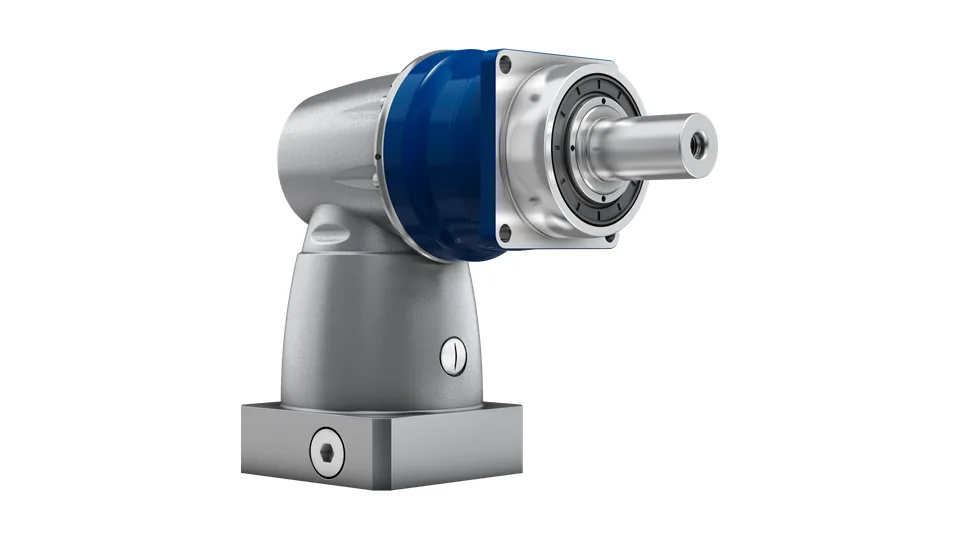

SPC+
Bevel gearboxes with an output compatible with the SP+ series for high efficiency
- Ratio: 4 – 20
- Max. torque: 48 – 1936 Nm
- Backlash: ≤ 2 – 4 arcmin
Galaxie®
WITTENSTEIN
Galaxie® GH
Galaxie® GH offers unique performance characteristics
- Ratio: 72 – 240
- Max. torque: 1086 – 4050 Nm
- Backlash: 0 arcmin
