WITTENSTEIN · alpha Advanced Line

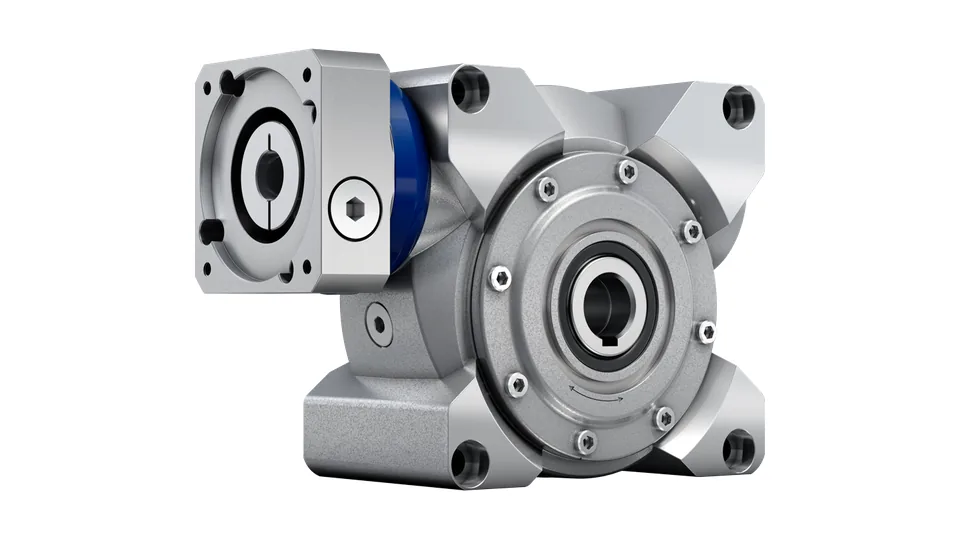

VH+
Worm gearbox with hollow-shaft interface
- Ratio: 4 – 400
- Max. torque: 74 – 1505 Nm
- Backlash: ≤ 2 – 3 arcmin
WITTENSTEIN
Hollow-Shaft Gearboxes
Large hollow shaft for cables and shafts
The large hollow-shaft diameter lets supply lines, shafts or cables of other drive systems pass through the gearbox. High positioning accuracy ensures stable machine performance.
alpha Advanced Line
WITTENSTEIN · alpha Advanced Line

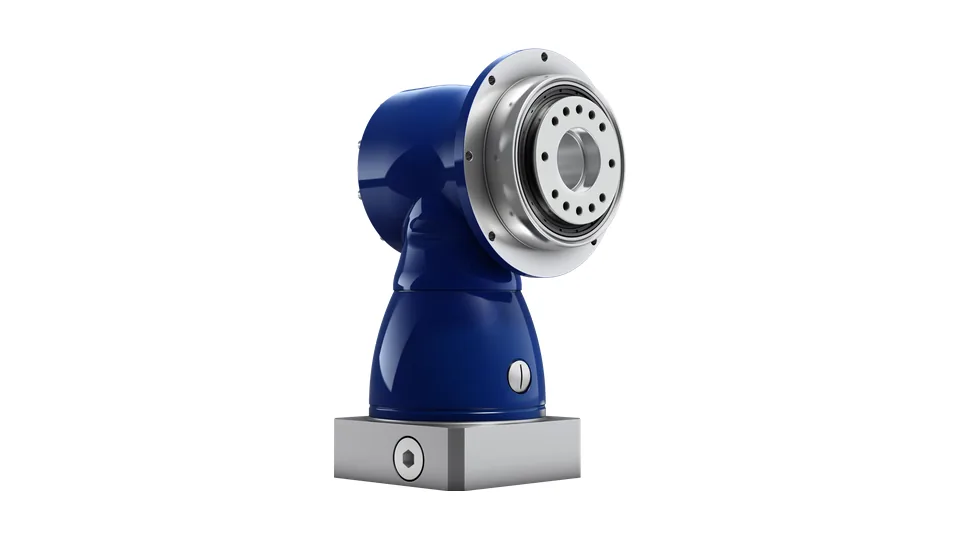

TK+
Hypoid gearbox with hollow shaft and output flange
- Ratio: 3 – 100
- Max. torque: 20 – 768 Nm
- Backlash: ≤ 4 arcmin
WITTENSTEIN · alpha Advanced Line

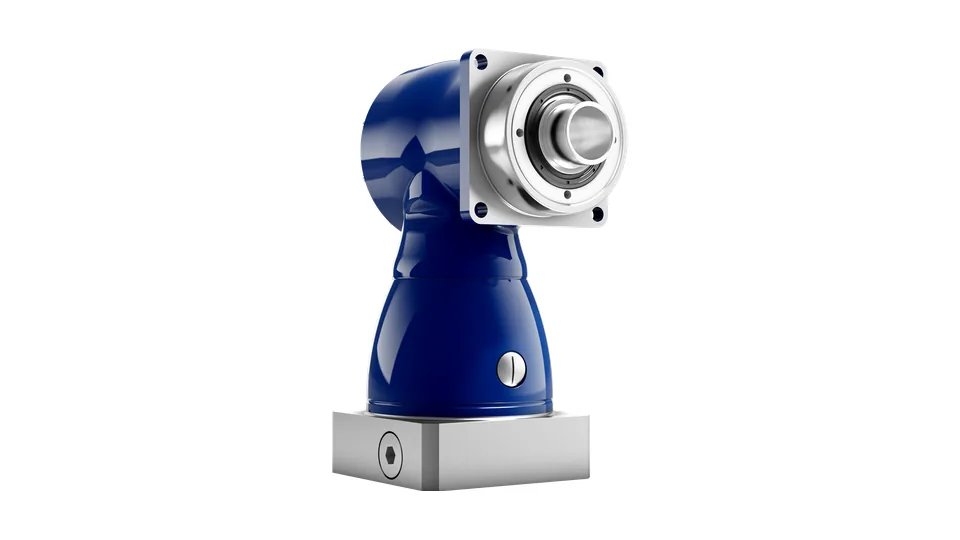

HG+
Hollow-shaft hypoid gearbox with a high number of variants
- Ratio: 3 – 100
- Max. torque: 20 – 768 Nm
- Backlash: ≤ 4 arcmin
alpha Value Line
WITTENSTEIN · alpha Value Line
NVH
Worm gearbox with hollow-shaft interface
- Ratio: 4 – 400
- Max. torque: 74 – 365 Nm
- Backlash: ≤ 6 arcmin
alpha Basic Line
WITTENSTEIN · alpha Basic Line
CVH
Worm gearbox with hollow-shaft interface
- Ratio: 7 – 40
- Max. torque: 68 – 301 Nm
- Backlash: ≤ 15 arcmin
Galaxie®
WITTENSTEIN
Galaxie® GS
Galaxie® GS sets new standards in precision and hollow-shaft diameter
- Ratio: 24 – 31
- Max. torque: 350 – 6000 Nm
- Backlash: 0 arcmin
WITTENSTEIN
Miniaturised Galaxie®
Miniaturised Galaxie® – maximum torsional rigidity, zero backlash and the largest hollow shaft
- Ratio: 60 – 61
- Max. torque: 150 – 250 Nm
- Backlash: 0 arcmin
WITTENSTEIN
Galaxie® GH
Galaxie® GH offers unique performance characteristics
- Ratio: 72 – 240
- Max. torque: 1086 – 4050 Nm
- Backlash: 0 arcmin
