Innomotics · GP

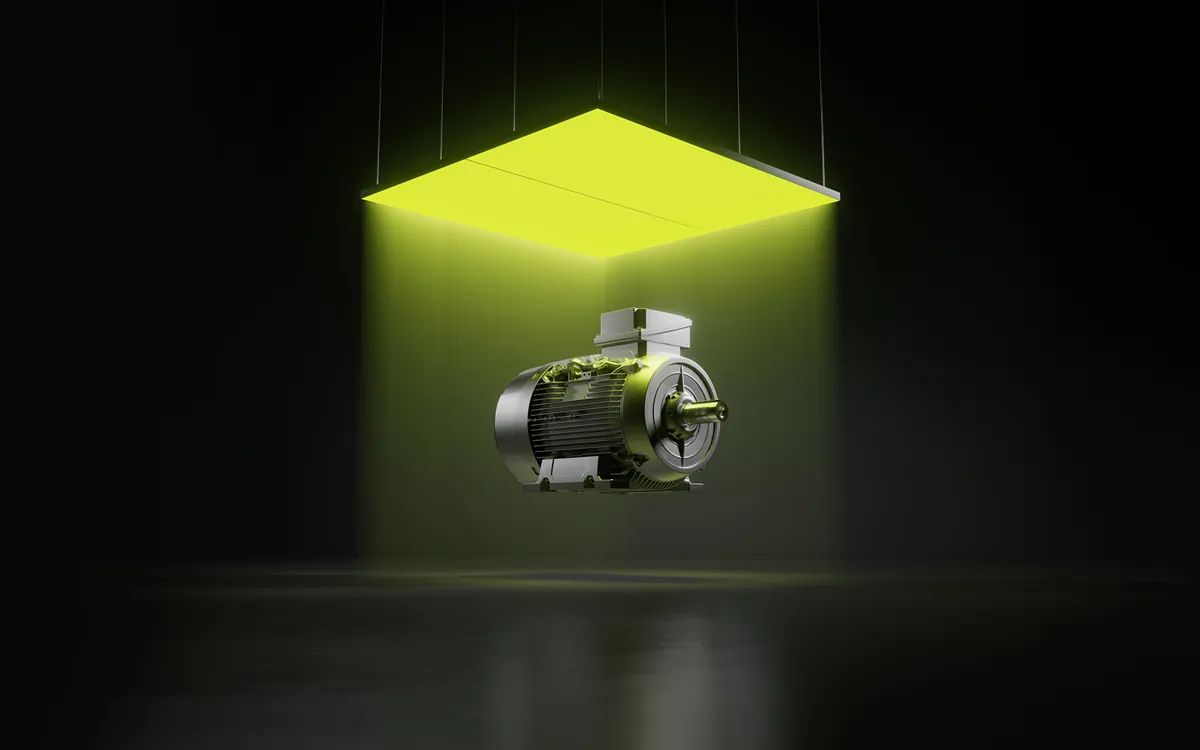

General Purpose Motors
Light aluminium-frame motors for everyday drives such as pumps, fans and conveyors.
- 0.09–45 kW · 230–690 V
- Efficiency classes IE1 to IE4
- IP55 to IP66
- Mains or converter versions (VSD10, VSD4000 reluctance)
Innomotics

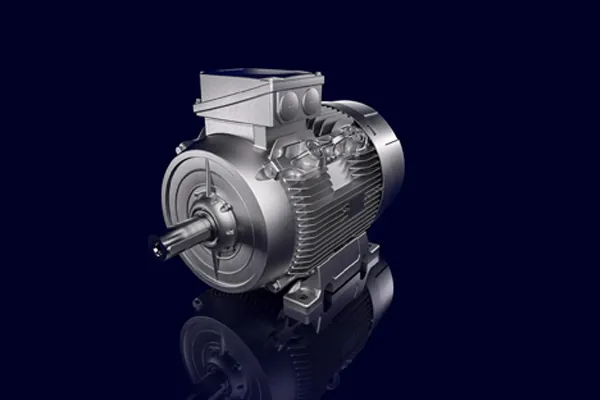

Low-Voltage Motors
Standard, severe-duty, explosion-proof and steel-plant motors up to 5.3 MW
From the small fan motor to the multi-megawatt motor on a converter: Innomotics (formerly Siemens SIMOTICS) covers the low-voltage range from 0.09 kW to 5.3 MW. We select the motor together with the drive it runs on — roller tables, cooling beds, pumps, fans and cranes in steel plants.
Standard series
Innomotics · SD
Severe Duty Motors
Cast-iron motors for dusty, hot and vibrating environments — the usual choice for auxiliary drives in a mill.
- Up to efficiency class IE4
- Shaft heights 71–315 for converter versions
- Direct-on-line or converter-fed
Innomotics · XP
Explosion-Proof Motors
Motors for hazardous areas, on the mains or on any converter — e.g. gas handling and oxygen plants.
- ATEX and IECEx
- Flameproof (Ex db) and increased safety (Ex eb)
- Gas group IIC including hydrogen
- Options from −55 °C to +60 °C
Steel plant & large motors
Innomotics
Definite Purpose Motors
Industry motors built beyond the standard programme for one job — in our case roller tables and mill auxiliaries.
- Roller table and steel mill motors
- Crane motors
- Marine motors
- Customer-specific motors
Innomotics

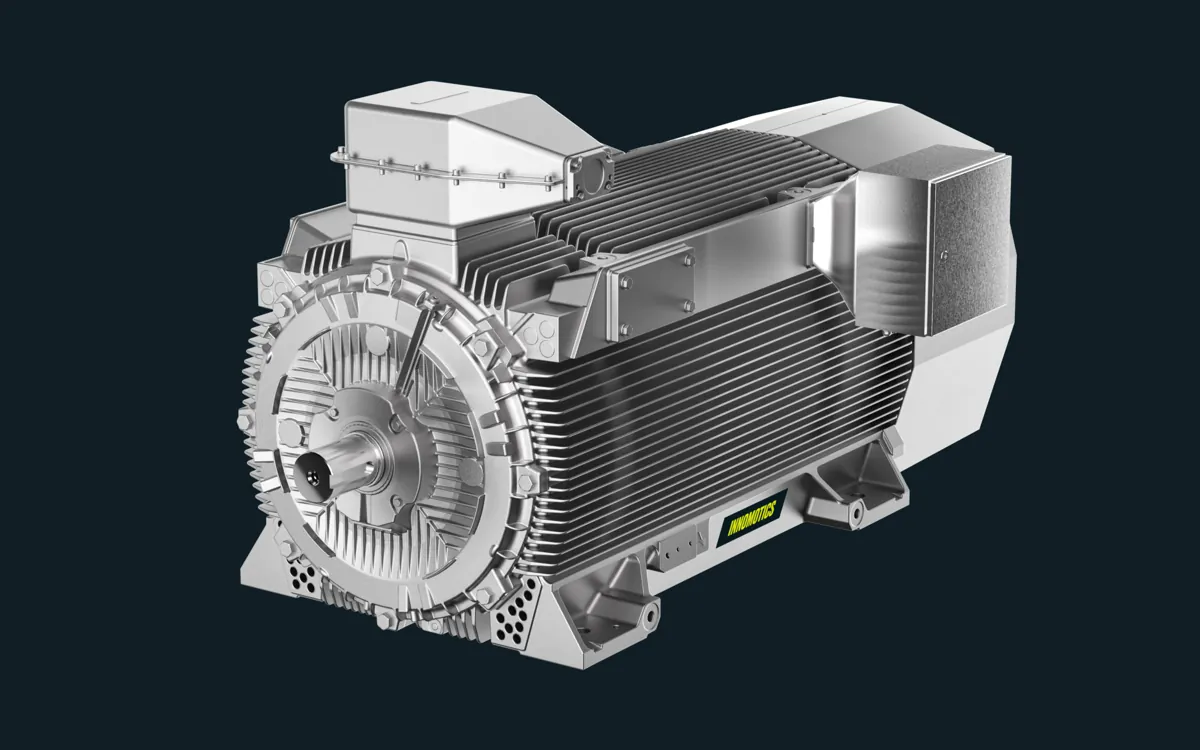

Large Low-Voltage Motors
Low-voltage versions of the HV C and HV M platforms for large fans, pumps and converter-fed drives.
- HV C: up to 2.6 MW, 380–690 V
- HV M: 250–5,300 kW
- Air-cooled, water-jacket-cooled or flameproof
High efficiency
Innomotics
Permanent Magnet Motors
IE5 motors that keep their efficiency at part load and low speed, in a smaller frame for the same torque.
- Type 1FZ1 · 0.37–250 kW
- Efficiency class IE5
- Converter operation
Innomotics

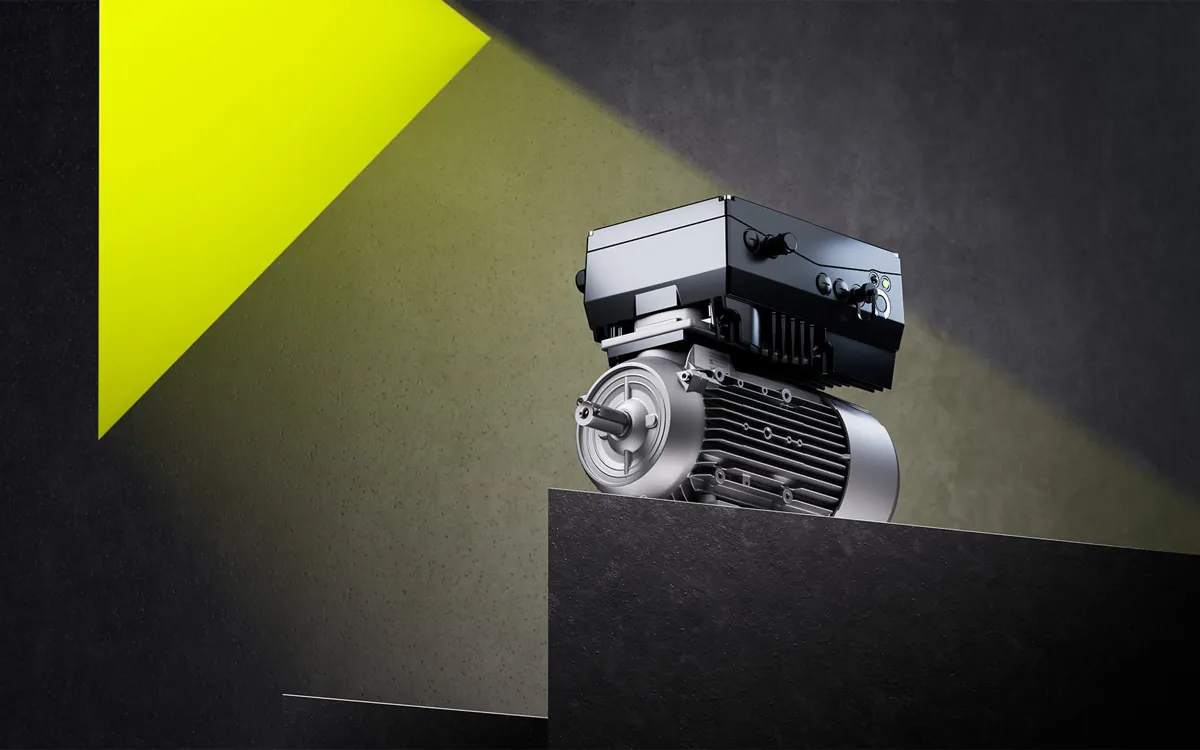

Motor Drive Systems
Permanent magnet motor and drive delivered as one tested package — little cabling, fast commissioning.
- Motor Mounted Line · 0.37–22 kW
- System efficiency class IES5
- Easy upgrade of direct-on-line motors
Selection & supply
Order numbers
Low-Voltage Motors order numbers we supply
Order numbers from our catalog, grouped by product family. Open a group or search by order number.
